Antistatic (ESD) Vinyl Flooring

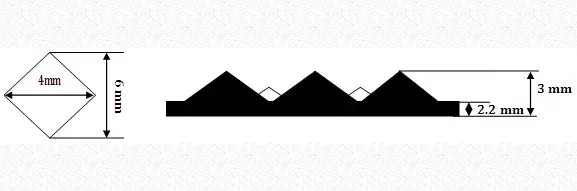

The flooring with continuous diamond field design is for excellent traction and easy cleaning. Non-staining, non-discoloring mat is used for both indoor and outdoor purpose. Diamond design is ideal for ramps, trailers, golf club bridge aprons, marine areas, building access points, wheeled vehicles, trolleys, etc. Being fully weatherproof it can be used either indoors or outdoors. Diamond design matting is manufactured from top quality rubber compounds giving high non-tear qualities, offering exceptional wear and grip characteristics and surefootedness.

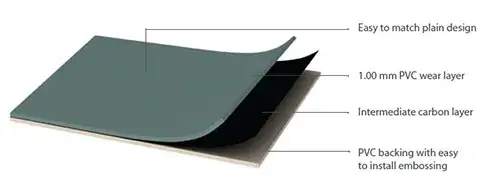

Antistatic Vinyl Flooring (ESD MAT)
Antistatic Vinyl Flooring (ESD MAT)
PVC Conductive Tiles
PVC Conductive Tiles
PVC Conductive Tiles



Physical Features Properties Test Results
Thikness
ASTM F386
2.0mm
3.0mm
Size
SJ/T 11236 - 2001
600mm X 600mm
610mm X 610mm
900mm X 900mm
914mm X 914mm
Weight/m2
EN 430
2.00mm : 3.00kg/m2
3.00mm : 4.87kg/m2
Dimension Stability
EN434
0.01%
Flexibility
ASTM F137
Dia 8mm : Pass
Squareness
SJ/T 11236-2001
600 x 600 / 610 x 610 : ± 0.02mm
Residual Indentation
SJ/T 11236-2001
≤ 0.15mm
Abrasion Resistance
ASTM D4060
(CS - 1000g, 1000 cycles)
0.0987 g
Hardness
ASTM D2240
65 (Type D / 1 Sec.)
Static Load Limit
ASTM F-970
0.02mm
Electrical Features Electrical Resistance
ANSI / ESD S7.1 - 2005
2.05 x 10 4 < R < 10 6
Body Voltage Generation
SJ/T 11236-2001
IVI < 100 volt
Static Decay GJB2605-1996 ≤ 2sec
Resistance to Chemical Resistance to Chemical
ASTM F925
Good
(Test Result Available upon request)
Fire Resistance Smoke Generated
ASTM E662-6 / NFPA 258
450 or less
Critical Radiant Flux
ASTM E648-06a / NFPA 253
Class I
Flame Spread
ASTM E 84-07 / NFPA 255
Class II
Outgassing ASTM E 595 Excellent (Test Result Available)
Miscellaneous Features Color Fastness
ISO 105 B02
≤ 6
Water Proof Test
ASTM D570
0.19%
Conductive Mat

Conductive Mat

PVC Conductive Tiles

PVC Conductive Tiles

Product Details :

Anti–Fatigue Mat
Anti–Fatigue Mat

Material

Conductive Material

Surface Resistance

10^3 to 10^5 ohms

Static Voltage

100 V

Thickness

2 mm

Dimension

20x1.5 mm, 15x2 mm (LxW)

Other Non ESD Flooring

The flooring with continuous diamond field design is for excellent traction and easy cleaning. Non-staining, non-discoloring mat is used for both indoor and outdoor purpose. Diamond design is ideal for ramps, trailers, golf club bridge aprons, marine areas, building access points, wheeled vehicles, trolleys, etc. Being fully weatherproof it can be used either indoors or outdoors. Diamond design matting is manufactured from top quality rubber compounds giving high non-tear qualities, offering exceptional wear and grip characteristics and surefootedness.

Anti-Skid Flooring : Diamond Design Mat
Anti-Skid Flooring : Diamond Design Mat

Sport Flooring



Wood Emboss

Sport Flooring
Sport Flooring



Shallow Emboss

Sport Flooring
Sport Flooring
Sport Flooring
Sport Flooring
Sport Flooring



Embossing : thicknessess 4.5, 6.5 & 8.0 mm available

Net Emboss

Sport Flooring
  • • Homogenous wear layer
  • • Low heat generating surface
  • • Reduced frictional burns
  • • Good grip
  • • 10 colours available



Shallow Emboss

Sport Flooring
  • • Homogenous wear layer
  • • Low heat generating surface
  • • Reduced frictional burns
  • • Good grip
  • • 10 colours available



Deep Emboss

Sport Flooring
  • • Homogenous wear layer
  • • High grip for firm footing
  • • Reduced slide
  • • Lesser slip injuries
  • • 10 colours available



Wood Textured Emboss

Sport Flooring
  • • Clear pvc wear layer
  • • Low heat generating surface
  • • Reduced frictional burns
  • • Excellent ball bounce
  • • 4 colours available

Product Details :

Nursury & play Grounds
Anti–Fatigue Mat
Nursury & play Grounds
Anti–Fatigue Mat
Anti–Fatigue Mat
Anti–Fatigue Mat
