Component Pre-Forming Machines

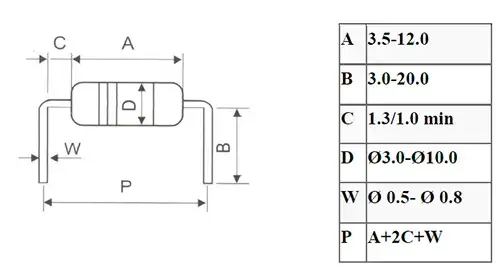

AUTOMATIC CUT & BEND MACHINE FOR TAPED AXIALS

Description :


SPECIFICATIONS :

Output 14000 pcs/hrs.
Power 220V AC,50 Hz
Dimensions L-330 W-160 H-155 mm
Weight 10 Kg

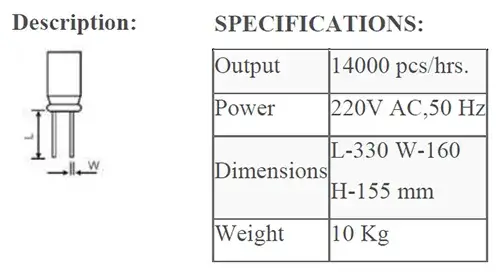

AUTOMATIC DE-TAPING MACHINE FOR TAPED RADIALS - UAP 850R

Category: Component pre-forming machines

IC LEAD STRAIGHTENER
IC LEAD STRAIGHTENER

Category: Component pre-forming machines

Description :

Model
EC 31 0.30” (07.62 mm)
EC 32 0.40” (10.06 mm)
EC 33 0.60” (15.24 mm)
EC 34 0.75” (19.05 mm)

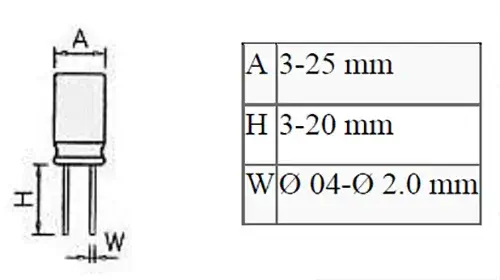

LOOSE RADIAL LEAD CUTTER - ARP 360

Category: Component pre-forming machines

Description :

SPECIFICATIONS :

Power 220V AC,50 Hz
Dimensions L-500 W-400 H-450 mm
Weight 30 Kg

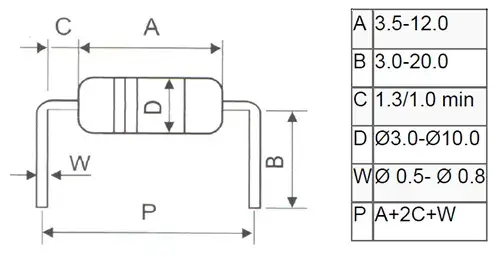

MANUAL CUT & BEND MACHINE FOR TAPED AXIALS

Description :

SPECIFICATIONS :

Output 10000-18000 pcs/hr
Dimensions L-330 W-160 H-155 mm
Weight 3 Kg
Manual De-Taping Machine for Taped Radials - MAP 860 R

SPECIFICATIONS :

Output 10000-18000 pcs/hr
Dimensions L-330 W-160 H-155 mm
Weight 3 Kg
A 12.7/15.0mm
L 3.0/20.0mm
W 0.4/0.8mm
MANUAL FORMING FOR TAPED AXIALS (VERTICAL)

SPECIFICATIONS :

Output 10000-18000 pcs/hr
Dimensions L-330 W-160 H-155 mm
Weight 3 Kg
A 4-18mm
B 3.5-6mm
C 5.0mm Min
D 1.5-8mm
W 0.4-0.8mm
P 2.5-13.3mm
H A+B+C

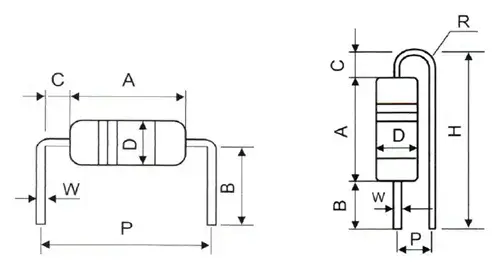

MANUAL FORMING FOR TAPED AXIALS (HORIZONTAL/VERTICAL)

SPECIFICATIONS :

Output 10000-18000 pcs/hr
Dimensions L250 X W250 X H 200mm
Weight 5 Kg
  A B C D W P H
H 3.5-40 3.6-15 1.2 min 1.5-8.0 0.35-1.0 A+2C
V 4-18 2.5-10 3.0 min 1.5-8.0 0.35-1.0 2.5-13.5 A+B+C
UNIVERSAL MANUAL PRE-FORMER

Category : Component pre-forming machines

FEATURES : Manual Operation

  • • Versatile machine with variety of tool option
  • • Suitable for loose axial and radial components
  • • Easy adjustments
  • • Hardened steel tooling
  • • Ideal for low to medium volume production

SPECIFICATIONS:

Dimensions L-165 W-105 H-100 mm
Weight 1.2 Kg
AUTOMATIC DE-TAPING MACHINE FOR TAPED RADIALS - UAP 850R

Category: Component pre-forming machines
