Wire Processing Machines

AUTOMATIC WIRE STRIPPING CUM TWISTING MACHINE

Category: Wire Processing

FEATURES :

  • • Suitable for round cables
  • • Twists the strands of multi strand wires
  • • Fast change over for different wire diameter
  • By changing collets
  • • Easy adjustment of strip length
  • • Nick free stripping as the tool does not touch the conductor



SPECIFICATIONS :

Wire Diameter 1.2mm to 3.5mm
Stripping Length 3.0mm to 25.0mm
Collet Sizes Available From 1.4 to 6.0mm in steps of 0.1 mm
Dimensions L-250 W-130 H-180mm
Weight 4 Kg
Power 220V AC, 50 Hz, 50W
Standard Accessories 220V AC, 50 Hz, 50W
Spare Spring 5 no’s
Spare Tool Bit 1 no.
Tool Kit 1 Allen key
AUTOMATIC WIRE SIZING MACHINE - AWS 540
AUTOMATIC WIRE SIZING MACHINE - AWS 540

Category : Wire Processing


DESCRIPTION :

  • • Suitable for round & flat cables, sleeves etc.
  • • Optional feed guides for flat cables
  • • Length measurement through closed loop circuit with encoder feedback
  • • Special grade tool steel cutting blades
  • • Capable to feed 3 wires at a time

FEATURES & SPECIFICATIONS :

Wire Diameter 1.0mm to 3.5mm
Length Setting Min 10mm to Max 9999mm
Time (T) for cutting Length (L) mm T= (L/132 + 1) sec.
Output per hr. for Length L mm 3600/T
Cutting Tolerance ± 2.0 mm
Dimensions L-420 W-320 H-360 mm
Weight 24 Kg
Power 220V AC, 50 Hz, 100W
DIGITAL WIRE CUT, STRIP, TWIST MACHINE - AWS 220 T

Category : Wire Processing


DESCRIPTION :

  • • Suitable for Cutting and stripping operation
  • • Twisting option available in Model AWS 220 T
  • • Can feed & cut two wires
  • • High Speed and accuracy

FEATURES & SPECIFICATIONS :

Cutting Length 0.1 to 9999mm
Stripping Length 0.1 to 99 mm (As per wire material)
Twisting Length 0.1 to 99 mm (As per wire material)
Wire Diameter AWG 16 to 32
Power 220 VAC, 50 Hz, 200W
Dimensions L-570mm W- 380mm H-440mm
Weight 40 Kg
Productivity Wire Length 100mm – 8420pcs/hrs.
500mm-5380pcs/hrs.
1000mm-3720pcs/hrs.
DIGITAL WIRE CUT, STRIP, MACHINE

Category: Wire Processing

FEATURES :

  • Suitable for Cutting and Stripping operation
  • Twisting option available in Model AWS 220 T
  • Can feed & cut two wires
  • High Speed and accuracy



SPECIFICATIONS :

Cutting Length 0.1 to 9999mm
Stripping Length 0.1 to 99 mm (As per wire material)
Twisting Length 0.1 to 99 mm (As per wire material)
Wire Diameter AWG 16 to 32
Power 220 VAC, 50 Hz, 200W
Dimensions L-570mm W- 380mm H-440mm
Weight 40 Kg
Productivity Wire Length: 100mm – 8420pcs/hrs.
500mm - 5380pcs/hrs.
1000mm - 3720pcs/hrs.

WIRE STRIPPER FOR ENAMEL WIRES - EPCR

WIRE STRIPPER FOR ENAMEL WIRES

FEATURES :

The wire stripper with armature will strip round enamel wires with any type of film insulation and varnish. The r.p.m control the speed; Insulation is cleanly removed but the sire conductor is not damaged. The machine is ideal for the production and repair of stripping of the armatures, coils, chokes, transformers, relays etc.

USAGE :

This equipment can be used for continuous Production

SPECIFICATION :

Wire Size - 35 to 11 SWG [0.20mm - 2.90mm]
Strip Length - 32mm
Power - Input Volatge - 230V 50 HZ AC 1Ph
Size - 240mm Length
Weight - 694 gms



WIRE STRIPPER FOR ENAMEL WIRES - ETBF

WIRE STRIPPER FOR ENAMEL WIRES

The wire stripper machine with a brush will strip flat and round enamel wires with any of film, insulation and varnish. The wire enamel brushes with high r.p.m. remove the insulation without damaging the wire conductor. This machine can strip multiple wires at a time. This machine is ideal for the production and repair of stripping of the armature, coils, chokes, transformers, relays... etc.

USAGE :

This equipment can be used for continuous Production

SPECIFICATION :

Wire Size - 35 to 11 SWG [0.20mm - 2.90mm]
Strip Length - 32mm
Power - Input Volatge - 230V 50 HZ AC 1Ph
Size - 240mm Length
Weight - 694 gms

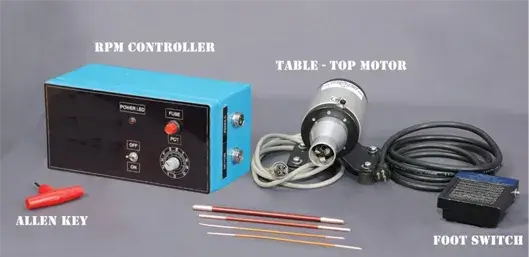

WIRE STRIPPER FOR ENAMEL WIRES - ETCR

WIRE STRIPPER FOR ENAMEL WIRES - ETCR

The wire stripper machine with brush will strip flat and round enamel wires with any of film, insulation and varnish. The wire enamel brushes with high r.p.m. removes the insulation without damaging the wire conductor. This machine can strip multiple wires at a time. This machine is ideal for the production and repair of stripping of armature, coils, chokes, transformers, relays... etc.

USAGE :

This equipment can be used for continuous Production

SPECIFICATION :

Wire Size - 35 to 11 SWG [0.20mm - 2.90mm]
Strip Length - 32mm
Power - Input Volatge - 230V 50 HZ AC 1Ph
Size - 240mm Length
Weight - 694 gms
