Antistatic ESD False Flooring or Raised Flooring

We are Manufacturer, Supplier, Dealer, Distributor, Trader of Automatic Wire Stripping Cum Twisting Machine - AWZ 460,Automatic Wire Sizing Machine - AWS 540, Auto-Wire Sizing, Digital Wire Cut, Strip, Twist Machine - AWS 220 T, Digital Wire Cut, Strip, Machine - AWS 220, Wire Enamel Coating Removal and our setup is situated in Pune, Maharashtra, India.



Antistatic ESD False Flooring or Raised Flooring
Antistatic ESD False Flooring or Raised Flooring
Antistatic ESD False Flooring or Raised Flooring



Antistatic ESD False Flooring or Raised Flooring
Antistatic ESD False Flooring or Raised Flooring
Antistatic ESD False Flooring or Raised Flooring



Antistatic ESD False Flooring or Raised Flooring

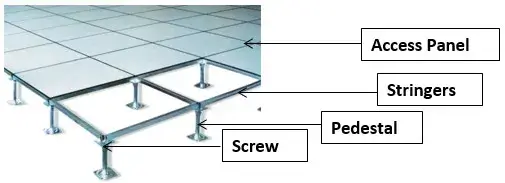

The panel is made of good cold rolled steel sheet, which are punched, spot-welded, coated with epoxy powder.Inside of the panel is filled with foamed cement.The top steel sheet of the panel is stuck with fireproof high pressure laminate ( HPL )or conductive PVC tile.The borders of the panel are trimmed with antistatic PVC edges.

Advantages and Applications :

  • • Fast, Easy and accurate installation
  • • Completely non-combustile:Class a flame spread and smoke development rating
  • • Excellent rolling load ultimate load performance
  • • Epoxy paint finish for lifetime protection
  • • Typically used in office areas, electrical rooms, server rooms and conference rooms

Technical Details :

  • • Tiles : Size 600mm x 600mm
    Thickness 35mm
    All steel construction with powder coated finish and cavity filled with cement slurry
  • • Pedestal : All steel construction zinc plated
    Threaded bolt and nut for level adjustment
    Top plate size : 75mm x 75mm x 3mm
    Botton plate size : 100mm x 100mm x 2mm
    pipe thickness : 1.2mm
    various heights available
  • • Stringer : All steel construction zinc plated
    Size : 22mm x 30mm x 570mm
    Thickness : 1.0mm
    Shape : seamless rectangular shape
    Hole Distance : 550mm ( center to center )
