Soldering & Desoldering Stations

AUTO SOLDER FEEDER
AUTOMATIC WIRE SIZING MACHINE - AWS 540

KEY SPECIFICATIONS / SPECIAL FEATURES:

  • • BK373 tin-wire feeder
  • • Power supply: AC 220V, 50Hz
  • • Motor: step
  • • Feed speed: 14 to 35mm/s
  • • Power consumption: 10W
  • • Volume: 0 to 120mm
  • • Interval time: 0 to 3.5s
  • • Size: 10.7 x 11 x 21.5cm
  • • Weight: 1.5kg

DIGITAL THERMOMETER



  • • Tip thermometer providing reliable temperature control of soldering iron tips
  • • Compact design saves your workspace and allows you to easily carry it around
  • • Extremely fine sensor with high temperature reactivity is incorporated

FEATURES: Surely and easily Temperature control

Suitable for Lead-Free Solder

  • • Good temperature response using a fine CA wire sensor (φ0.2mm)
  • • Disposable sensor always maintains accurate temperature measurement
    (Replace sensor when the measuring point underwent degradation)
  • • Sensor has the twice service life than conventional ones.



AUTO SHUT-OFF FUNCTION

• If no measurement operation is performed within 3 minutes, the power will be automatically shut off.

MAX HOLD FUNCTION

When the button "MAX HOLD" is pressed, "MAX HOLD" will be displayed and the highest temperature of Iron will be held in the display

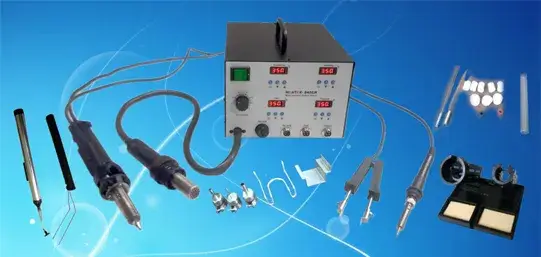

multifunctional rework station

The HEATEX-845CR Multifunctional Rework station was developed to meet the present and future needs of the electronic industry, Service / R&D engineers and the hobbyist. The multiplication ability of this station makes it ideal for use in situations where the maximum amount of flexibility is required. The station has an inbuilt pump to provide the air movement for the hot air gun and the vacuum for the desoldering tool and can be used to rework both surface mounted and through hole components. The 845CR control unit is the base a microprocessor controlled system to regulate the solder processes.

SYSTEMS INCLUDES :

  • • Power base with built in Air Pump & Microprocessor Based Power
  • • control channel with digital display
  • • Soldering iron
  • • De-Soldering iron
  • • Hot Air gun
  • • SMD Tweezers
  • • Stands with cleaning sponge
  • • Power cord
  • • Vacuum Placer
  • • IC lifter
  • • Complete Tool Box, Replacement soldering & Desoldering
  • • Bits, Cleaning springs & sponges, Ex….



TECHNICAL SPECIFICATIONS :

Input Voltage 230VAC, 50Hz
Temperature Range 180°C - 450°C (Soldering & PTH De-Soldering Iron)
200°C - 450°C (SMD Hot-Air Gun)
180°C - 400°C (SMD Tweezers)
De-Soldering Iron 24VAC, 65W
Soldering Iron 24VAC, 60W
Tweezers 24VAC, 50W Hot
Hot Air Gun 230/110 VAC,1 50 W
Air Pum 230 VAC, 3-24 Lt/Min
Vacuum Pum 24 VDC,10000 RPM/800 Mm/Hg
Temp control accuracy ± 2%, For soldering, desoldering
Temp control Stability ± 2°C
Tip Leakage Current < 2 mA
Tip to Ground Resistance < 2 Ohms
Tip to Ground Leakage Voltage < 2 Mv



FEATURES:

  • • Temperature Control for accurate and precise temperature
  • • Hot air gun for safe and-contact SMT component removal or replacement.
  • • Integrating the functions of hot air and soldering iron, more convenient for use and covering less workspace.
  • • High capacity through hole (PTH) De-soldering iron with finger activated vacuum
  • • The detachable soldering iron is engineered with a highly insulated ceramic heating element
  • • SMD Tweezers For Quick Removal SMT Components
  • • Instant Recovery Soldering Iron For Hand Soldering And Touch Up Operations
  • • Bright display for clear visibility
  • • Auto tune systems control
  • • Closed loop temperature control
  • • Soft On/Off Power switch
  • • Modular and compact design
  • • Quality nozzles /Bits for long life
  • • Easy to handle. Different Sized Bits & Nozzles are available.
  • • Monitor Bit & Nozzle temperature intelligently with perfect temperature offset tonsure soldering Quality.
  • • The unit is digitally calibrated through advanced software.
  • • Burn Proof silicon cable thermal resistance up to 600 Deg.C
  • • Heatex – 845CR soldering ceramic heater provides high insulation and reduces the handle-to-tip distance for faster soldering with a minimum of motion. The special alloy heating element is printed in the alumina ceramic insulating layer, then sintered to the ceramic main body, completely sealing the heating element from the air, protecting it from oxidation.
  • • A more advanced version of this uses a microprocessor to monitor the temperature of the tip via thermocouple and adjusts the power to the heating element accordingly.



REPLACEMENT TIP UNIT:

PID CONTROL SMD REWORK STATION

FEATURES :

  • • PID Control for accurate and precise temperature
  • • Hot air gun for safe and-contact SMT component removal or replacement.
  • • Self-contained diaphragm Air pump
  • • Bright display for clear visibility
  • • Auto tune systems control
  • • Closed loop temperature control
  • • Soft On/Off Power switch
  • • Modular and compact design
  • • Integrating the functions of hot air and soldering iron, more convenient for use and covering less workspace.
  • • Self-contained Air Pump, with air flow quantity, can be adjusted softly.
  • • Easy to handle. Different Sized Bits & Nozzles are available.
  • • Monitor Bit & Nozzle temperature intelligently with perfect temperature offset to ensure soldering Quality.



SYSTEMS INCLUDE :

  • • Power base with built in air pump & PID based power control channel with digital display
  • • Hot air gun for non-contact soldering and de-soldering of SMD’s with single hole nozzle
  • • Side attachment for Hot air gun stand



TECHNICAL SPECIFICATIONS :

  • • Input Voltage : 230VAC, 50Hz
  • • Hot air gun : 110VAC, 150W
  • • Air pump : 230VAC, 3-24 Lt/min
  • • Temp Range : 150 - 450°C
pid control soldering & desoldering station

FEATURES :

  • • Temperature Control for accurate and precise temperature
  • • display for clear visibility. LCD display optional
  • • Auto tune systems control
  • • Closed loop temperature control
  • • Soft On/Off Power switch
  • • Modular and compact design
  • • Quality nozzles for long life
  • • High capacity through hole De-soldering iron with finger activated vacuum
  • • Easy to handle. Different Sized Bits & Nozzles are available.
  • • Monitor Bit & Nozzle temperature intelligently with perfect temperature offset to ensure soldering Quality.
  • • Heatex – 606SD soldering ceramic heater provides high insulation and reduces the handle-to-tip distance for faster soldering with a minimum of motion. The special alloy heating element is printed in the alumina ceramic insulating layer, then sintered to the ceramic main body, completely sealing the heating element from the air, protecting it from oxidation.
  • • A more advanced version of this uses a microprocessor to monitor the temperature of the tip via thermocouple and adjusts the power to the heating element accordingly.



SYSTEMS INCLUDE :

  • • Microprocessor based power control unit with built in vacuum pump.
  • • Stand with cleaning sponge & Cellulose tip cleaning sponge
  • • Power cord & Toolbox: Fiber filters 20 No’s, solder collector glass tube 1No, Tip replace Spanner 1No, Cleaning
  • • spring 2 No’s, Silicon washers 2 sets.



TECHNICAL SPECIFICATIONS :

  • • Input Voltage : 220-240VAC, 50Hz fuse: 3.15A
  • • De-soldering : 24VAC, 80W Soldering: 24VAC, 60W
  • • De-sold pump : 24VDC, 80W Vacuum Pressure: 700mm HG
  • • Temp Range : 160 to 480°CSD
PID CONTROLLED SOLDERING STATION

FEATURES :

  • • Microprocessor Controlled Electronic temperature control.
  • • Step less variable temperature control system for varying temp continuously from 180˚C to 480˚C.
  • • Perfect ground tip.
  • • Wide range inter-changeable long life PTH Bits.
  • • Minimum Heat loss & super thermal recovery for quick & efficient work.



SPECIFICATIONS :

Input Voltage 230V AC ± 10% 50Hz
Soldering O/P Voltage 24V AC
Power 90 Watt
Temperature Range 180˚C to 480˚C
Temperature Resolution ± 1˚C
Temperature Control Accuracy ± 2 %
Tip Leakage Current <2 mA.
Tip to Ground resistance <2 Ohms.
PID CONTROLLED SOLDERING STATION

FEATURES :

  • • Microprocessor Controlled Electronic temperature control.
  • • Step less variable temperature control system for varying temp continuously from 180˚C to 480˚C.
  • • Perfect ground tip.
  • • Wide range inter-changeable long life PTH Bits.
  • • Minimum Heat loss & super thermal recovery for quick & efficient work.



SPECIFICATIONS :

Input Voltage 230V AC ± 10% 50Hz
Soldering O/P Voltage 24V AC
Power 120 Watt
Temperature Range 180˚C to 480˚C
Temperature Resolution ± 1˚C
Temperature Control Accuracy ± 2 %
Tip Leakage Current <2 mA.
Tip to Ground resistance <2 Ohms.
SMD REWORK STATION (Hot Air + Solder Station)

FEATURES :

  • • PID Control for accurate and precise temperature
  • • Hot air gun for safe and-contact SMT component removal or replacement.
  • • Self-contained diaphragm Air pump
  • • Bright display for clear visibility
  • • Auto tune systems control
  • • Closed loop temperature control
  • • Soft On/Off Power switch
  • • Modular and compact design
  • • Integrating the functions of hot air and soldering iron, more convenient for use and
  • • Covering less work space
  • • Self-contained Air Pump, with air flow quantity can be adjusted softly.
  • • Easy to handle. Different Sized Bits & Nozzles are available.
  • • Monitor Bit & Nozzle temperature intelligently with perfect temperature offset to ensure soldering quality.



SYSTEMS INCLUDE:

  • • Power base with built in air pump & PID based power control channel with digital display.
  • • Soldering iron.
  • • Stand with cleaning sponge
  • • Cellulose tip cleaning sponge.
  • • Hot air gun for non-contact soldering and de-soldering of SMD’s with single hole nozzle.



TECHNICAL SPECIFICATIONS :

Input Voltage 230VAC, 50Hz.
Soldering O/P Voltage 24VAC, 60W.
Hot air gun 110VAC, 150W.
Air pump 230VAC, 3-24 Lt/min
Temp Range 180- 480°C (Soldering iron) & 150- 450°C (Hot air gun).
PID CONTROL SMD REWORK STATION (Only SMD Hot Air) SARA 72

FEATURES :

  • • PID Control for accurate and precise temperature
  • • Hot air gun for safe and-contact SMT component removal or replacement.
  • • Self-contained diaphragm Air pump
  • • Bright display for clear visibility
  • • Auto tune systems control
  • • Closed loop temperature control
  • • Soft On/Off Power switch
  • • Modular and compact design
  • • Integrating the functions of hot air and soldering iron, more convenient for use and
  • • Covering less work space
  • • Self-contained Air Pump, with air flow quantity can be adjusted softly.
  • • Easy to handle. Different Sized Bits & Nozzles are available.
  • • Monitor Bit & Nozzle temperature intelligently with perfect temperature offset to ensure soldering quality.



SYSTEMS INCLUDE:

  • • Power base with built in air pump & PID based power control channel with digital display
  • • Hot air gun for non-contact soldering and de-soldering of SMD’s with single hole nozzle
  • • Side attachment for Hot air gun stand



TECHNICAL SPECIFICATIONS :

Input Voltage 230VAC,50Hz
Hot air gun 110VAC,150W
Air pump 230VAC,3-24 Lt/min
Temp Range 150- 450°C
THERMAL WIRE STRIPPER – INSULATION REMOVER

FEATURES :

The Insulation Remover manufactured by us effectively removes insulation from wires that can later be employed for a variety of purposes. Our Insulation Remover neatly strips the wire without leaving any residue material on the wire. The Insulation Remover has been designed by in-house experts to provide unmatched, error-free performance for a long time.

  • • Control Unit - L 125x W 90 x H 70mm Weight 1.9 kg.
  • • Stripper Handle - D 20 x L 185mm Weight: 200 grams. Without cable



FEATURES ESD SAFE BY DESIGN :

  • • FLAT BLADES: Nichrome Super Heat flat blades for long life.
  • • Element: Nichrome heating element for quick and Easy removal of a sleeve.
  • • Temperature: Variable Temperature 300°C to 650°C.



OPTIONAL WIRE BLADES :

Operation : Handle will operate on the principle of crocodile Clip, i.e., by pressing the rear side of the handle the front side element holder will wide open.

Lock : Elements fixed on the studs will get hooked each other in a loop such that the wire will get locked in between the loop to strip the sleeve.
